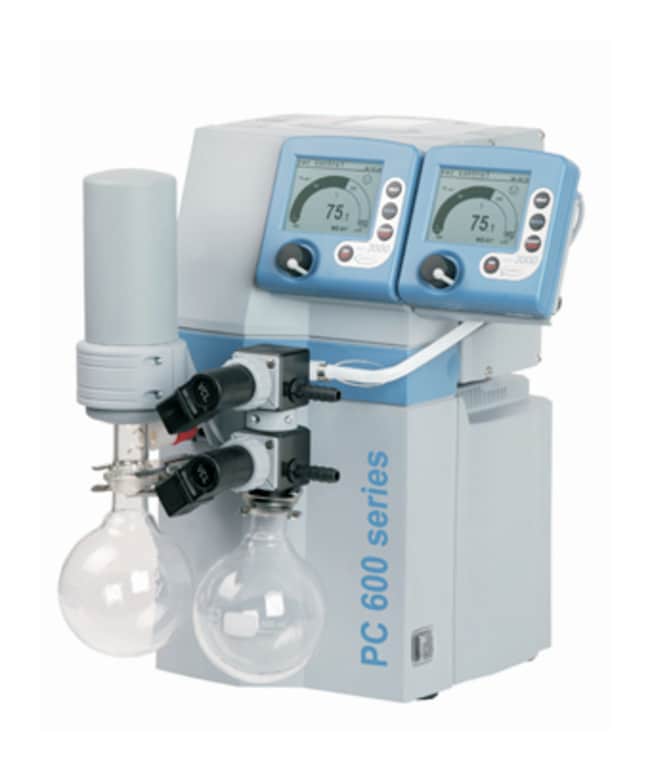

VACUUBRAND™ PC620 NT Dry Chemistry Vacuum System

Product Code. 10324933
Change view
Click to view available options
Flow Rate:
2/2.2 CFM
Unit Size:
Each
1 product options available for selection
Product selection table with 1 available options. Use arrow keys to navigate and Enter or Space to select.
Product Code. Flow Rate unitSize
10324933 2/2.2 CFM Each
Use arrow keys to navigate between rows. Press Enter or Space to select a product option. 1 options available.
1 options
This item is not returnable. View return policy
Product Code. 10324933 Supplier VACUUBRAND™ Supplier No. 20737300

This item has been discontinued and is no longer available. View the product for possible alternatives or contact our Technical Support team on +351 21 425 33 50 for assistance
 View alternative products

This item is not returnable. View return policy

Description

Features solvent recovery, inlet separator for rough operating conditions.

  • Provide particularly high pumping speed
  • Ideal for higher vacuum requirements(e.g., with high boiling solvents)
  • High chemical resistance supporting almost universal usage in chemistry and pharmaceutics
  • Inlet separator (AK) retains particles, liquid droplets
  • Enables solvent recovery, active protection of environment
  • Reduced process time due to particularly high pumping speed even near ultimate vacuum
  • Whisper quiet, very low vibration
Applications:
  • Evacuation, evaporation and pumping of gases and vapors
TRUSTED_SUSTAINABILITY

Specifications

Max. Vacuum 1.1 torr (without Gas Ballast), 2.3 torr (with Gas Ballast)
Control 2 x CVC 3000
Horsepower 0.34 hp
Amperage 3 A
Includes Manual
Motor Speed 150 to 1800 rpm
Certifications/Compliance ATEX Conformity II 3G IIC T3 X, CE, DIN EN 1012-2:2011, DIN EN 12100:2001, DIN EN 50581:2013, DIN EN 61010-1:2011, DIN EN 61326-1:2013, IEC 61010-1:2010
Electrical Requirements 230 V 50/60 Hz
Material ETFE head cover, PTFE diaphragm, FFKM valves, PTFE tubing
Model PC-620 NT
Noise Level 45 dB(A)
Plug Type CEE
Temperature (Metric) Storage -10°C to +60°C
Weight (English) 46 lb.
Weight (Metric) 20.9 kg
Temperature (English) Max. 104°F
Temperature (Metric) Max 40°C
Temperature (Metric) Min. 10°C
Flow Rate 2/2.2 CFM
Frequency 50/60 Hz
Overall Height (English) 17.48 in.
Overall Height (Metric) 444.5 mm
Overall Length (English) 17.1 in.
Overall Length (Metric) 434.34 mm
Overall Width (English) 14.21 in.
Overall Width (Metric) 360.68 mm
Pump Type Diaphragm Pump
Enclosure Rating IP40
No. of Pump Heads 4
Temperature (English) Min 50°F
Applications Gel Dryers
Oil Type Oil-Free
No. of Stages 3
Maximum Pressure 16 psi
Voltage 230 V
